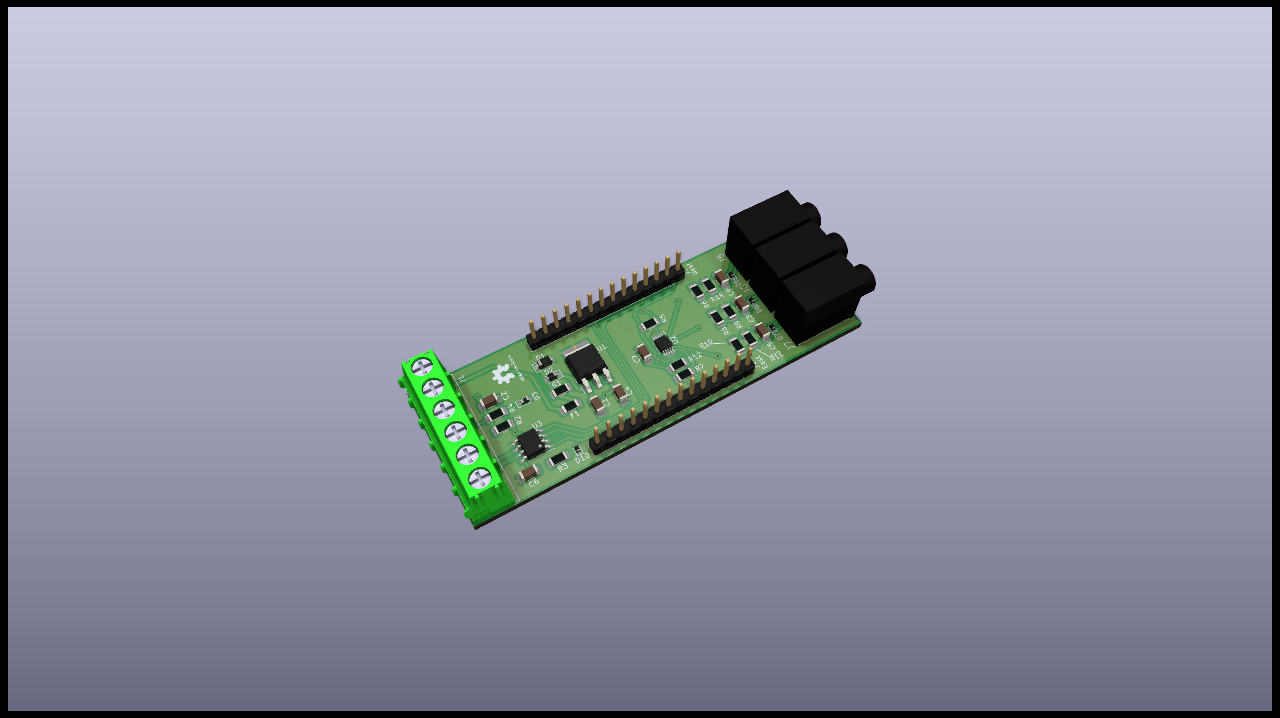

CT Module
Specifications
The CT module is dedicated to be used for EMS use cases. Current transformers (split core) with voltage output may be used (e.g. SCT-013).
It is a base module on level 1 of the stack. Its features are:
- 5V-24V power input
- 3x CT
- 1x Analog in (ADC)
- 1x Digital in (e.g. S0 meters)
- 1x RS485 interface (ModBus RTU meters)
Schematics
