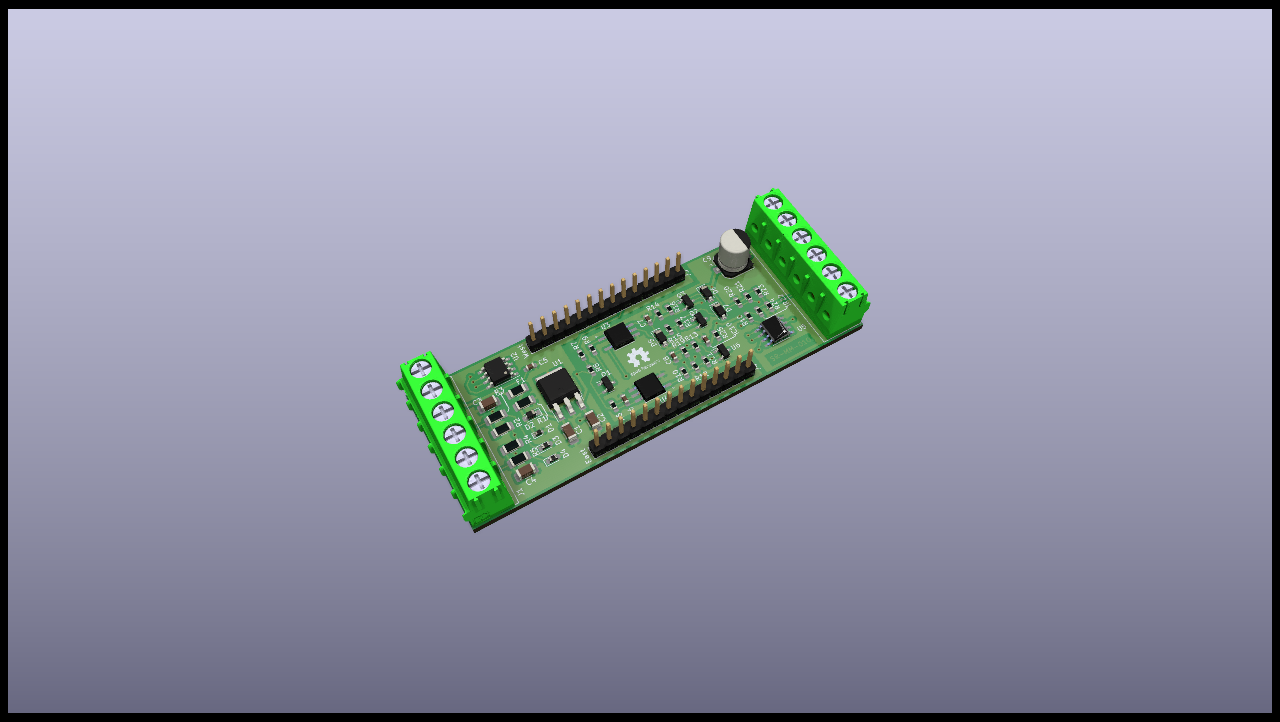

M-Bus Module
Specifications
The M-Bus module is dedicated to be used for interacting with different meters via RS485 or M-Bus. The module acts as M-Bus master, but a separate power supply is needed. Because the size of this power supply depends on the amount of connected meters, we decided to give the ability to choose a fitting, external power supply.
The M-Bus module is a base module on level 1 of the stack. Its features are:
- 5V-24V power input
- 1x M-Bus interface
- 1x RS485 interface (ModBus RTU meters)
- 2x pulse interface (S0 meters)
- PE / Shield pins for bus connections
Schematics
