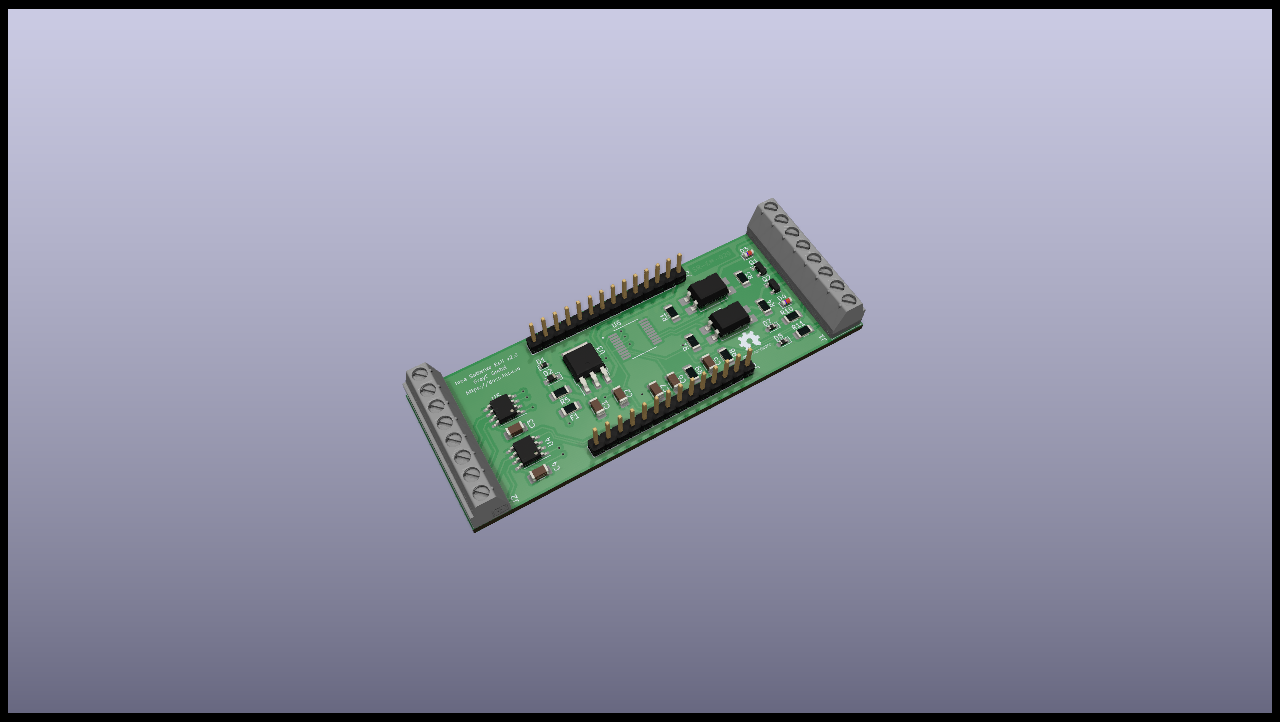

Electric Metering Module
Specifications
The electric metering module is dedicated to be used for interacting with electric meters, inverters, batteries and so on. It is a base module on level 1 of the stack. Its features are:
- 5V-24V power input
- PE / Shield pin
- 2x RS485 interface (used for e.g. ModBus, ...)
- 2x pulse interface (S0, Photoelectric barrier, ...)
- 2x relay driver
Schematics
